Product description

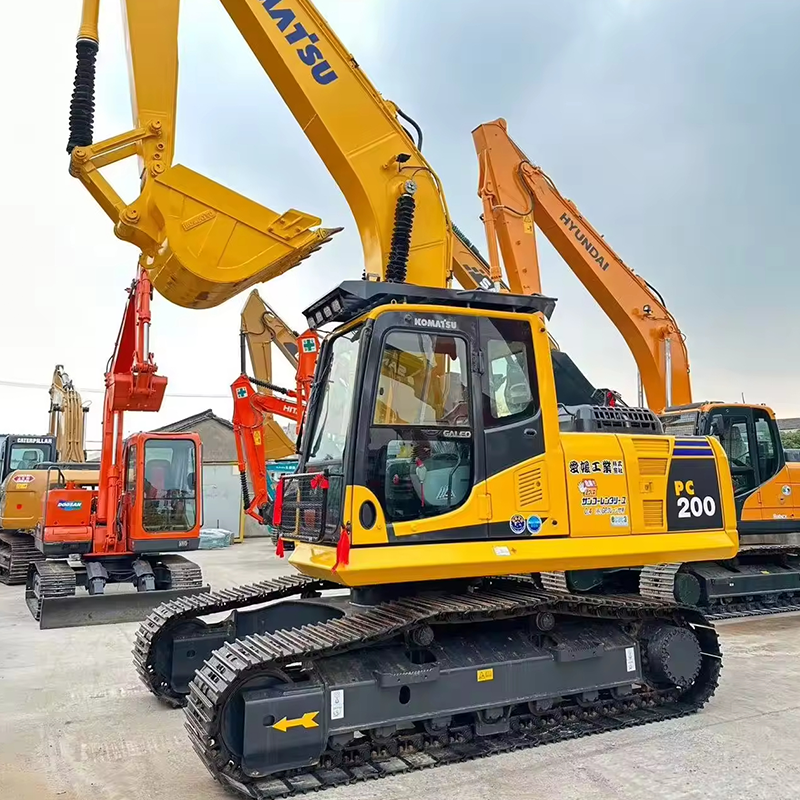

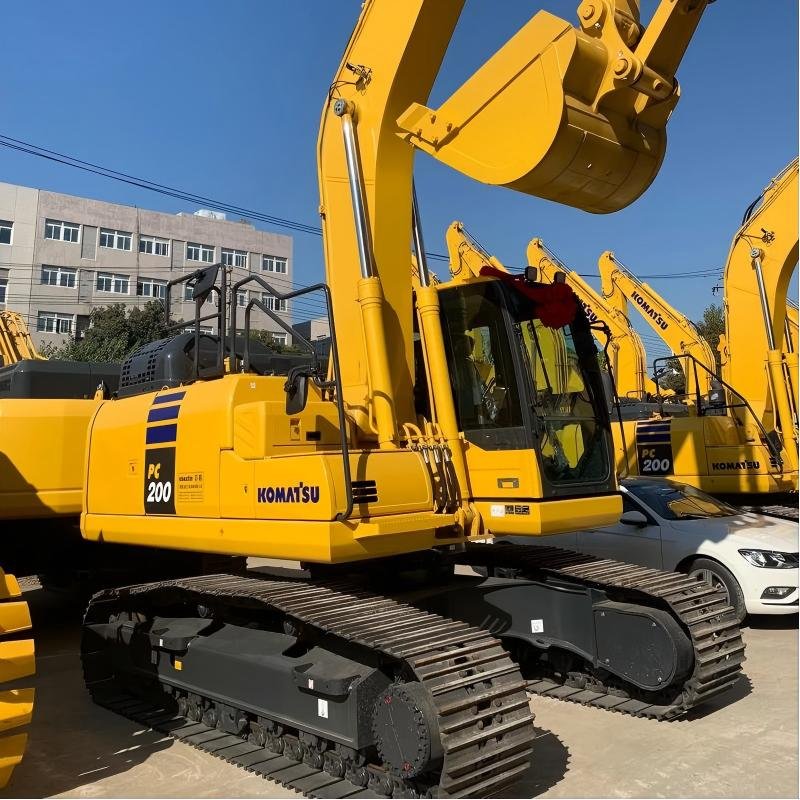

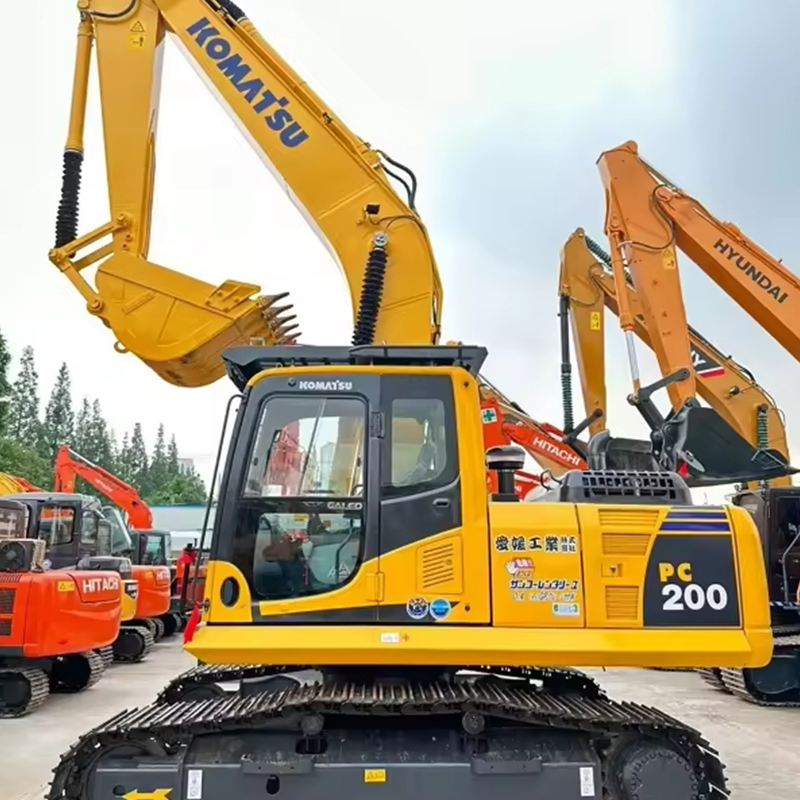

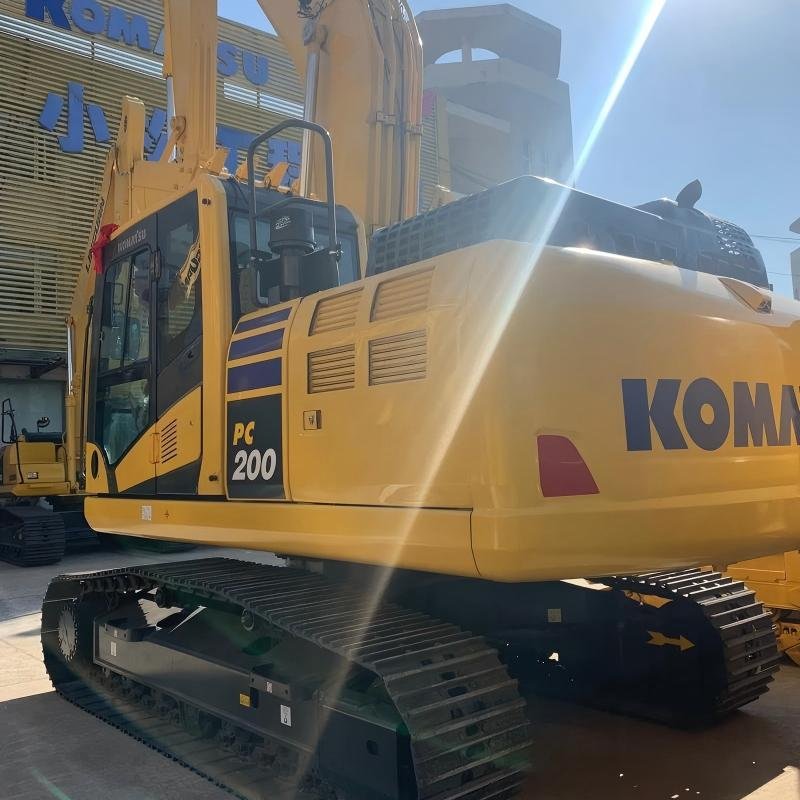

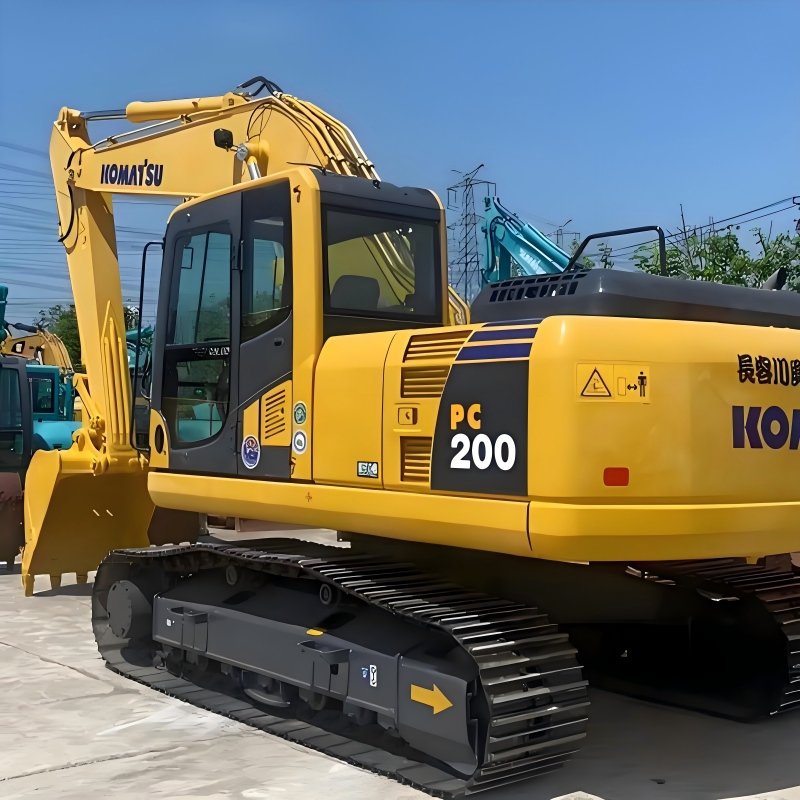

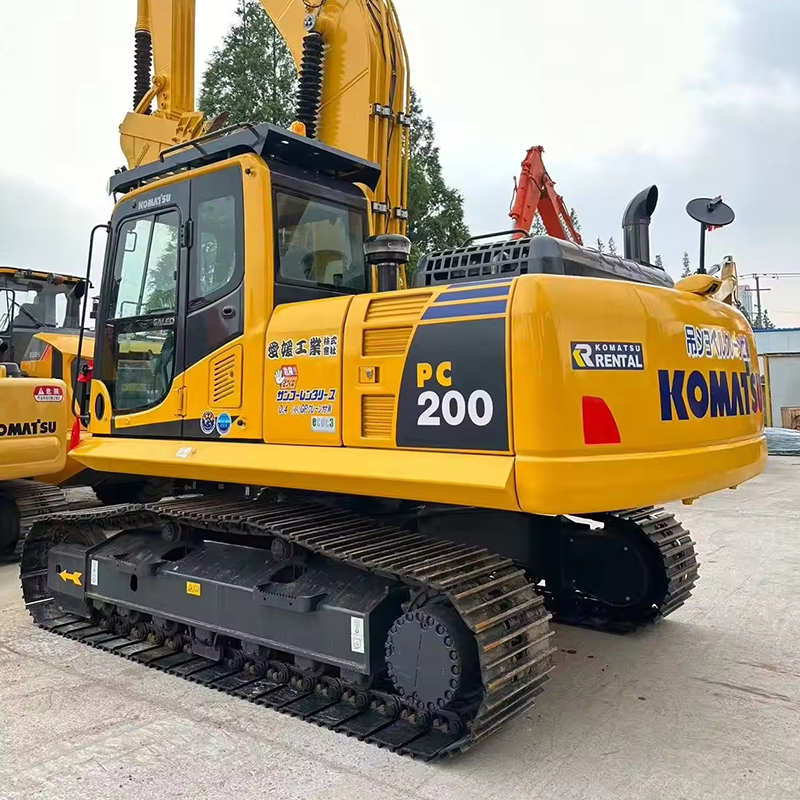

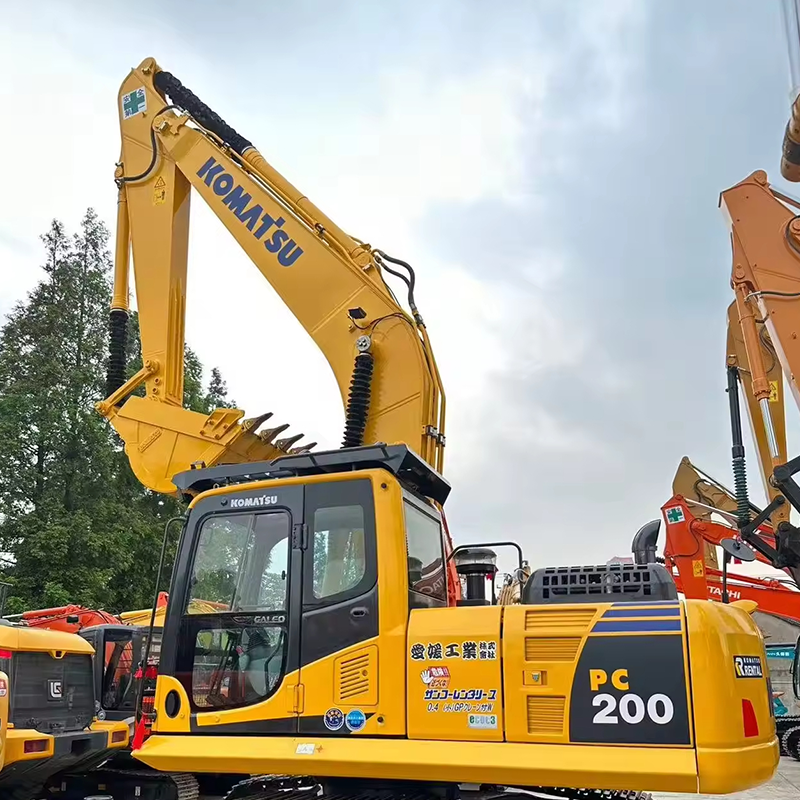

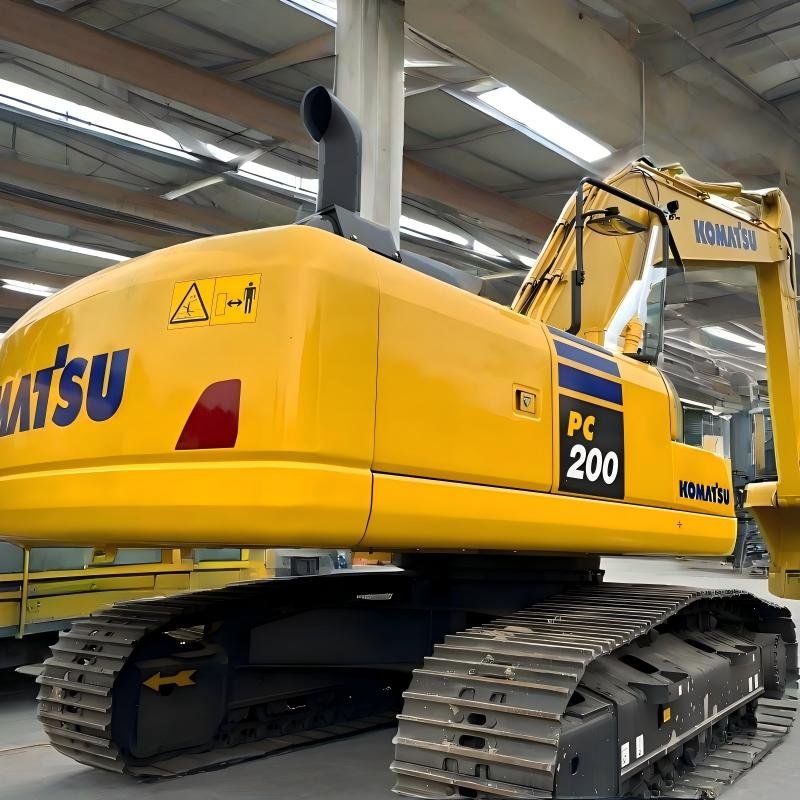

Core Advantages of Komatsu PC200-7 Excavator:
Powerful Performance – 148 hp engine with strong power output
Intelligent Hydraulics – CLSS hydraulic system for high working efficiency
Robust Durability – Reinforced structure design with long service life
Eco-Friendly – Low fuel consumption and clean emissions
20-ton medium excavator suitable for various working conditions including earthworks and mining operations.
Product Parameters
| Basic Specifications | Operation Weight | 19800-20500KG |
| Engine Brand | Komatsu SAA6D107E-1 | |
| Rated Power | 110KW | |
| Digging Bucket Capacity | 0.8-1.2m³ | |
| Traveling Motor | High-speed motor + Planetary gear reducer | |
| Swing Motor | High-speed motor + Planetary gear reducer | |
| Hydraulic system | Variable displacement piston pump | |
| Fuel tank | 400L | |
| Hydraulic oil tank | 220L | |
| Main Dimensions | Overall Length | 9945(mm) |
| Overall Width | 2800(mm) | |
| Overall Height | 3170 (mm) | |
| Track Width | 600 (mm) | |
| Track Length | 4490 (mm) | |
| Performance | Max. Digging Radius | 9870 (mm) |
| Max Digging Depth | 6750 (mm) | |
| Max. Unloading Height | 6780 (mm) | |
| Max. Digging Height | 9610 (mm) | |
| Max. Grade Ability | 35 | |
| Swing Speed | 12.5R/min | |
| Travel Speed | 5.5km/h |
