Product description

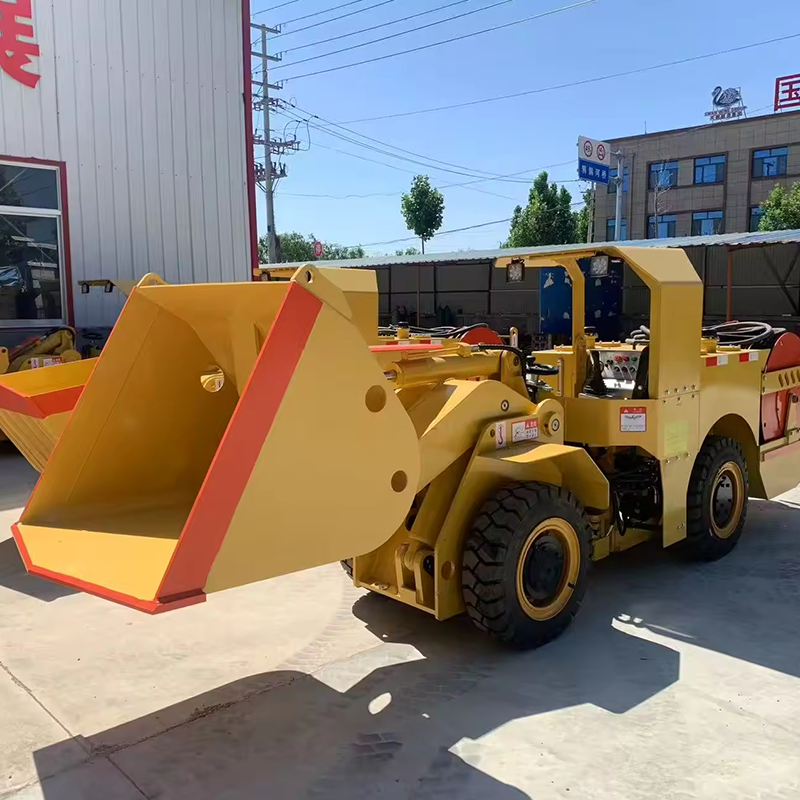

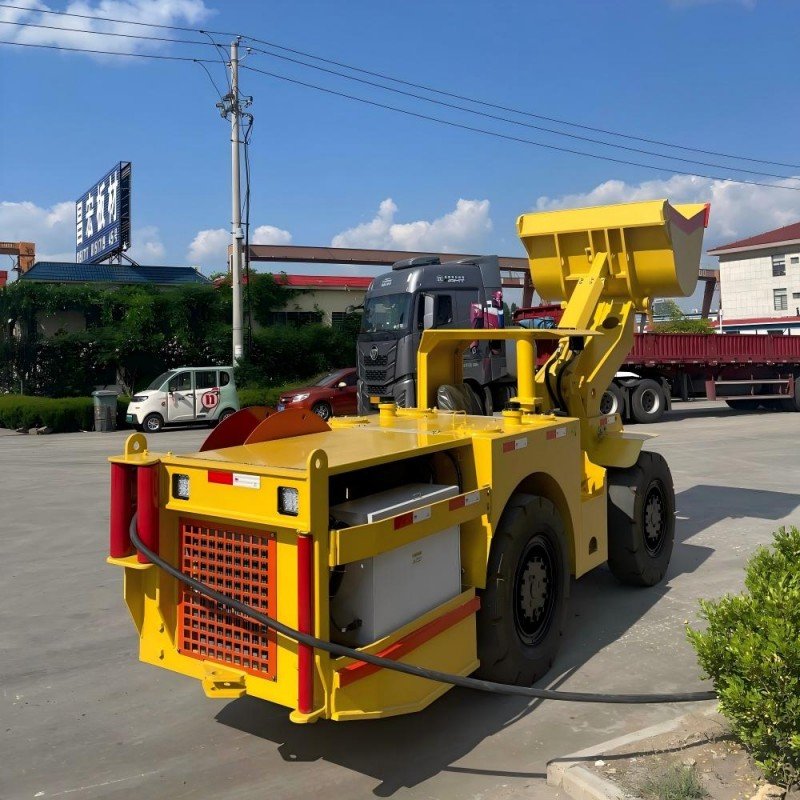

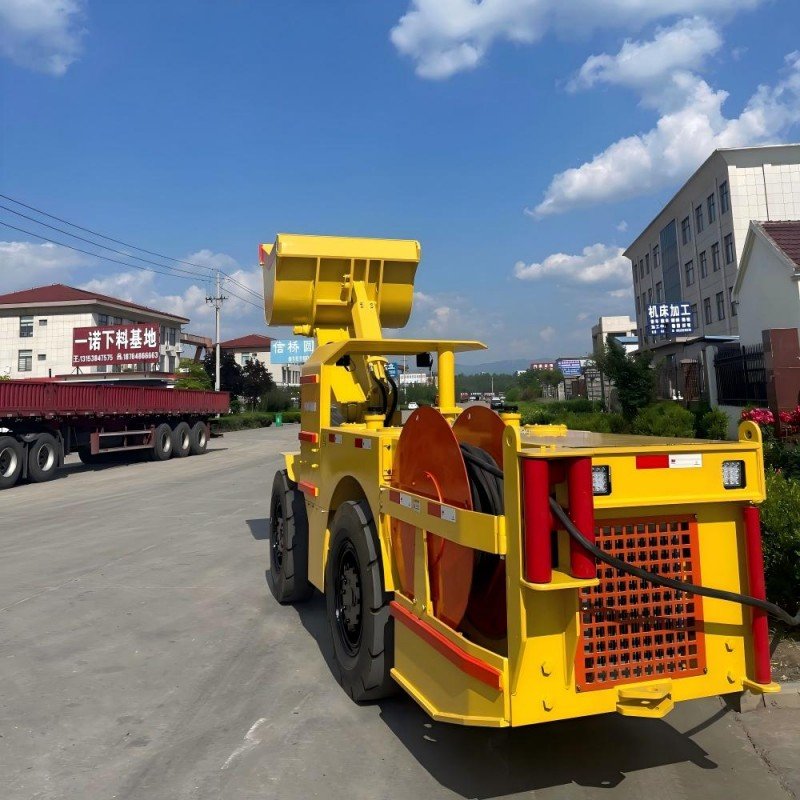

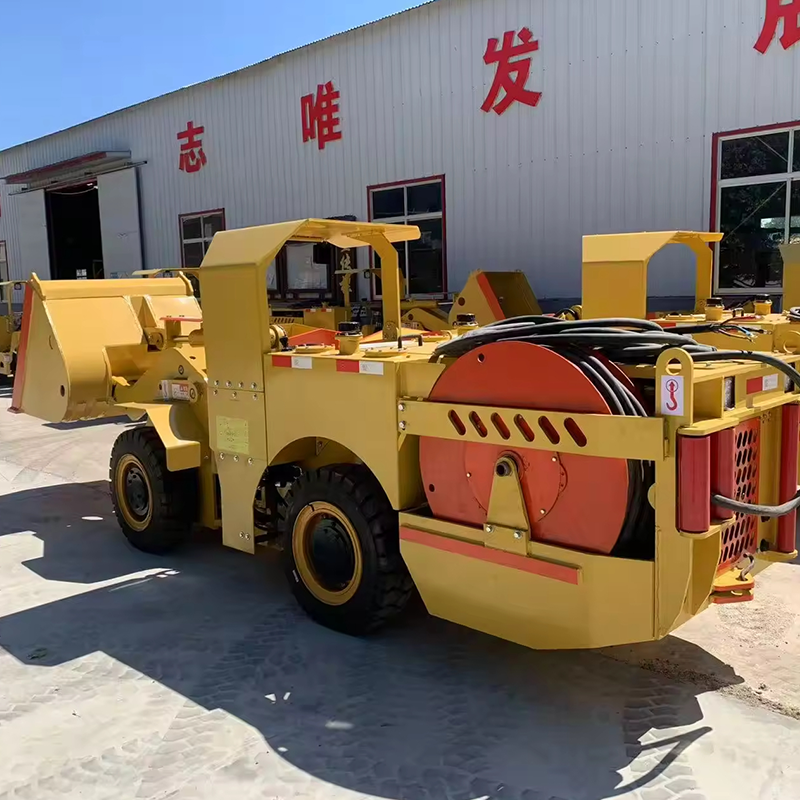

WJD-1 Electric Wheel Loader is a high-capacity pure electric solution with key advantages including:
1m³ bucket capacity and 2-ton rated load for high-intensity operations;
2m inner turning radius for excellent maneuverability;
48kN breakout force for efficient digging performance;
Pure electric drive with zero emissions and low noise, ideal for eco-sensitive sites;

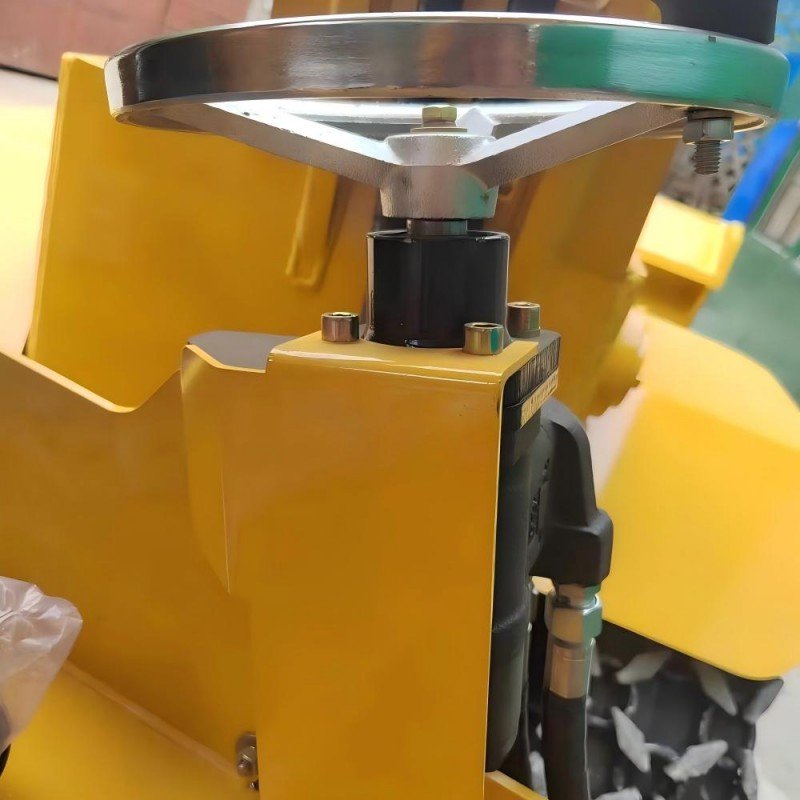

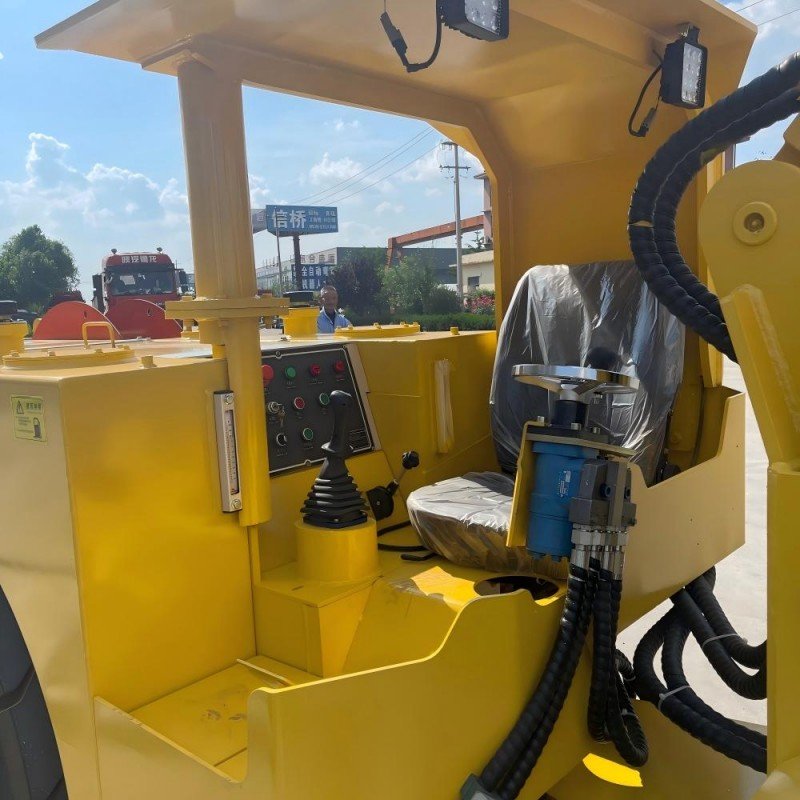

Pilot control system ensures easy and precise handling.
Product Parameters
| Parameter | Specification | Parameter | Specification |
| Load Capacity | 1 m³ | Machine Weight | 6700 Kg |
| Inner Turning Radius | 2000 mm | Outer Turning Radius | 4500 mm |
| Ground Clearance | 200 mm | Maximum Steering Angle | ±38° |
| Rated Load | 2 T | Wheelbase | 2200 mm |
| Maximum Traction Force | 58 KN | Breakout Force | 48 KN |
| Total Motor Power | 45 KW | Dumping Reach | 860 mm |
| Dumping Height | 1100 mm | Adaptable Tunnel Slope | ≤8° |
| Climbing Ability | ≤14° | Travel Speed | 0-8 km/h |
| Operation Mode | Pilot Control | Overall Dimensions (L×W×H) | 6300×1300×2000 mm |
