Product description
Core Advantages of SANY SY215H Pro Excavator:
High Efficiency & Energy Saving – 168 hp proprietary electronic injection engine reduces fuel consumption by 10%
Intelligent & Precise – Positive flow control system improves movement coordination by 20%
Robust & Durable – Reinforced structural design with service life up to 20,000 hours
Easy Maintenance – Open engine cover design simplifies routine maintenance
21-ton medium excavator, particularly suitable for heavy-duty applications like earthworks and mining operations.
Product Parameters
| Basic Specifications | Operation Weight | 21500KG |
| Engine Brand | SANY-Cummins SC9DK.220Q5 | |
| Rated Power | 125KW | |
| Digging Bucket Capacity | 0.9-1.3m³ | |
| Traveling Motor | High-speed motor + Planetary gear reducer | |
| Swing Motor | High-speed motor + Planetary gear reducer | |

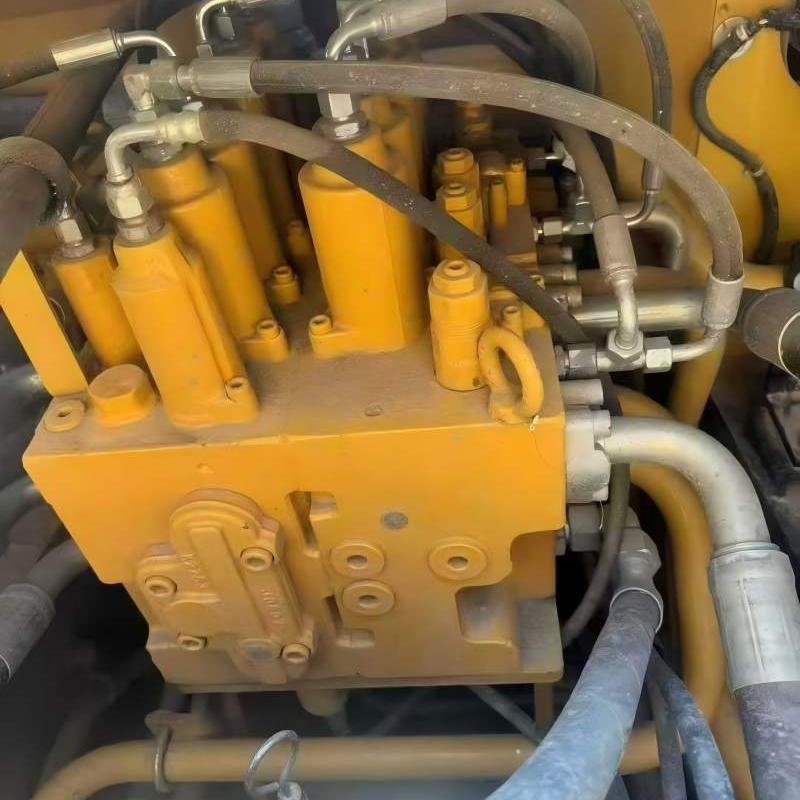

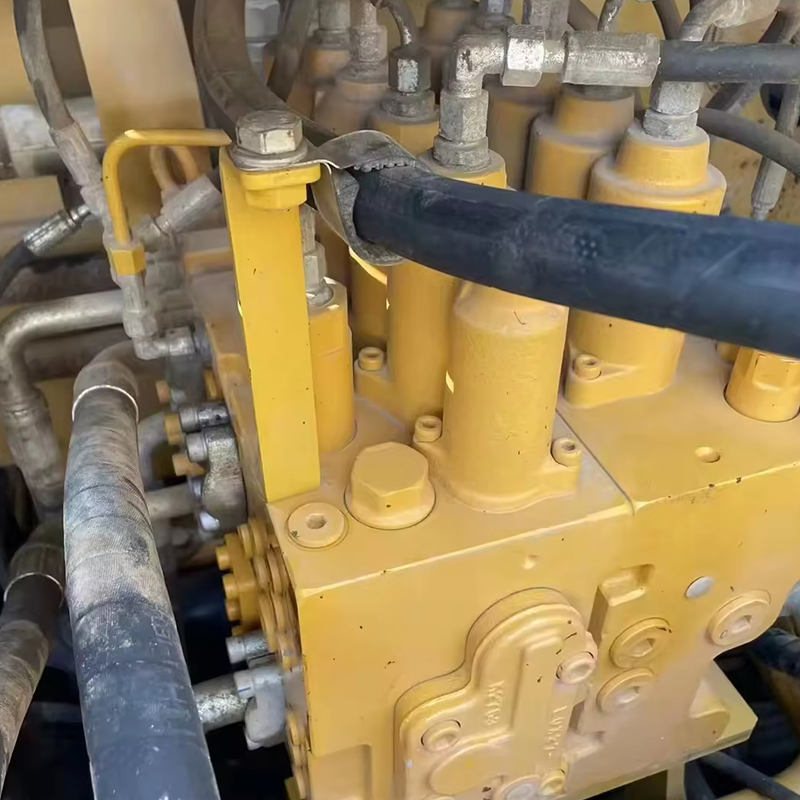

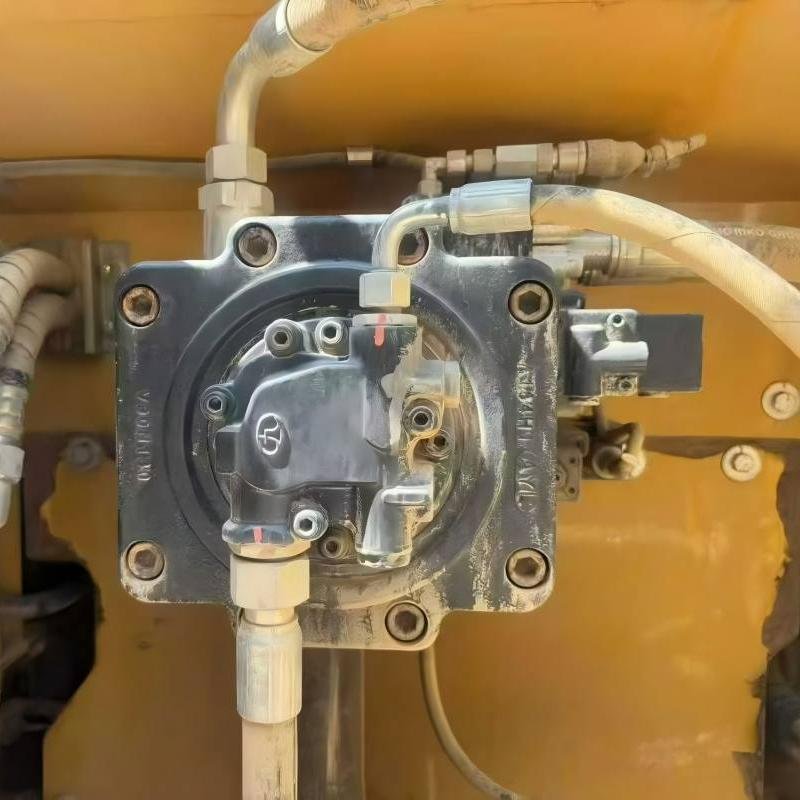

| Hydraulic system | Variable displacement piston pump | |
| Fuel tank | 400L | |
| Hydraulic oil tank | 230L | |
| Main Dimensions | Overall Length | 9950(mm) |
| Overall Width | 2800 (mm) | |
| Overall Height | 3150 (mm) | |
| Track Width | 600 (mm) | |
| Track Length | 4500 (mm) | |
| Performance | Max. Digging Radius | 10020 (mm) |
| Max Digging Depth | 6800 (mm) | |
| Max. Unloading Height | 6950 (mm) | |
| Max. Digging Height | 9760 (mm) | |
| Max. Grade Ability | 35 | |
| Swing Speed | 12.5R/min | |
| Travel Speed | 5.5km/h |
