Product description

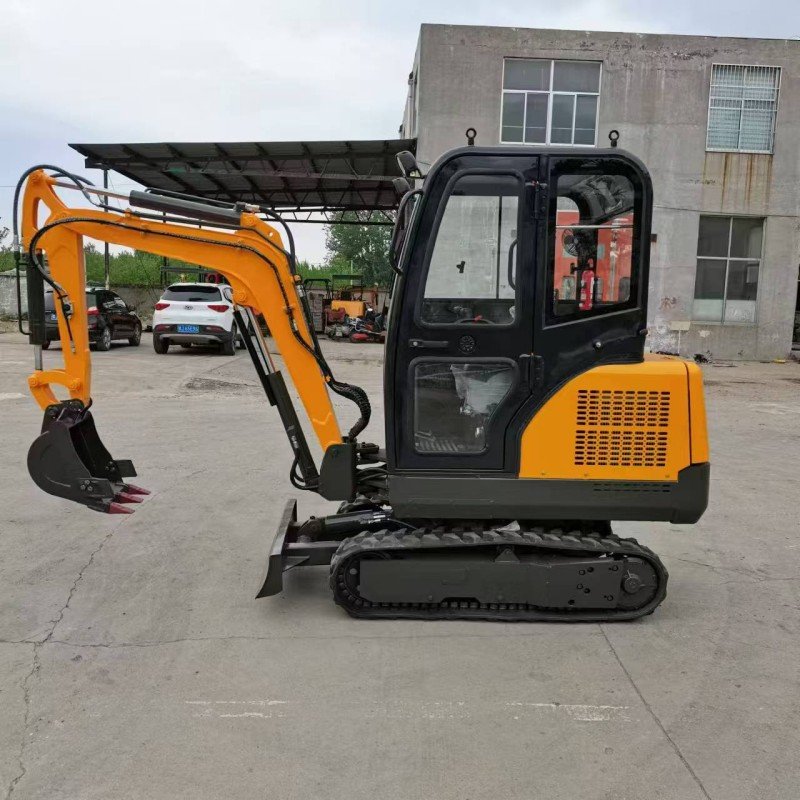

Core Advantages of TW20 (Old Model):
Strong Digging Performance: Max. digging radius of 4.1m, depth of 2.4m, and height of 3.2m.
Superior Power System: 18.1KW engine equipped with Danfoss travel and swing motors.
Long Operating Endurance: Large 29L fuel tank for extended operation.
Good Accessibility: Compact width of 1060mm for confined spaces.
Rich Configuration Options: Customizable with high/low speed motors, cab, telescopic undercarriage, etc.
Core Selling Points: Large digging range, reliable power, long endurance, high adaptability.
Product Parameters
| Basic Specifications | Operation Weight | 1800KG |
| Engine Brand | Laidong | |
| Rated Power | 18.1KW | |
| Digging Bucket Capacity | 0.06m³ | |
| Traveling Motor | Danfoss | |
| Swing Motor | Danfoss | |
| Hydraulic system | Gear Pump | |
| Boom Swing Angel(L/R) | 55/45 | |
| Fuel tank | 29L | |
| Hydraulic oil tank | 36L | |
| Main Dimensions | Overall Length | 3900 (mm) |
| Overall Width | 1060 (mm) | |
| Overall Height | 2145 (mm) | |
| Track Width | 230 (mm) | |
| Track Length | 1650 (mm) | |
| Performance | Max. Digging Radius | 4112 (mm) |
| Max Digging Depth | 2418 (mm) | |
| Max. Unloading Height | 2125 (mm) | |
| Max. Digging Height | 3210 (mm) | |
| Max. Grade Ability | 35 | |
| Swing Speed | 10R/min | |
| Travel Speed | 2.5km/h | |
| Rich Options | Engine, High/Low Speed Motor, Cab (with Air Conditioning), Track, Telescopic Undercarriage, Mechanical Travel, Variable Double Tandem Plunger Pump. | |
