Product description

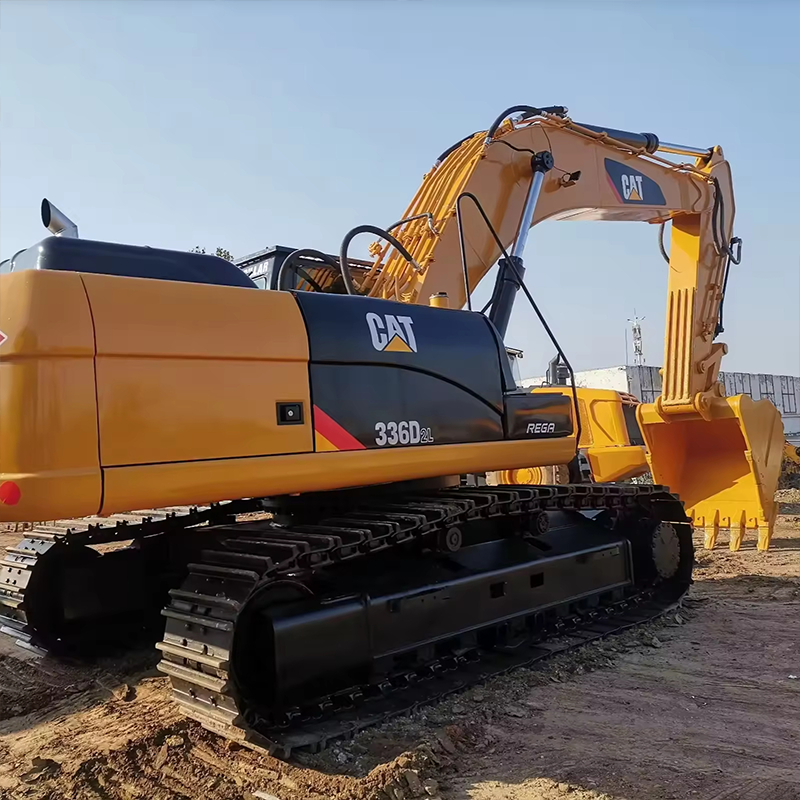

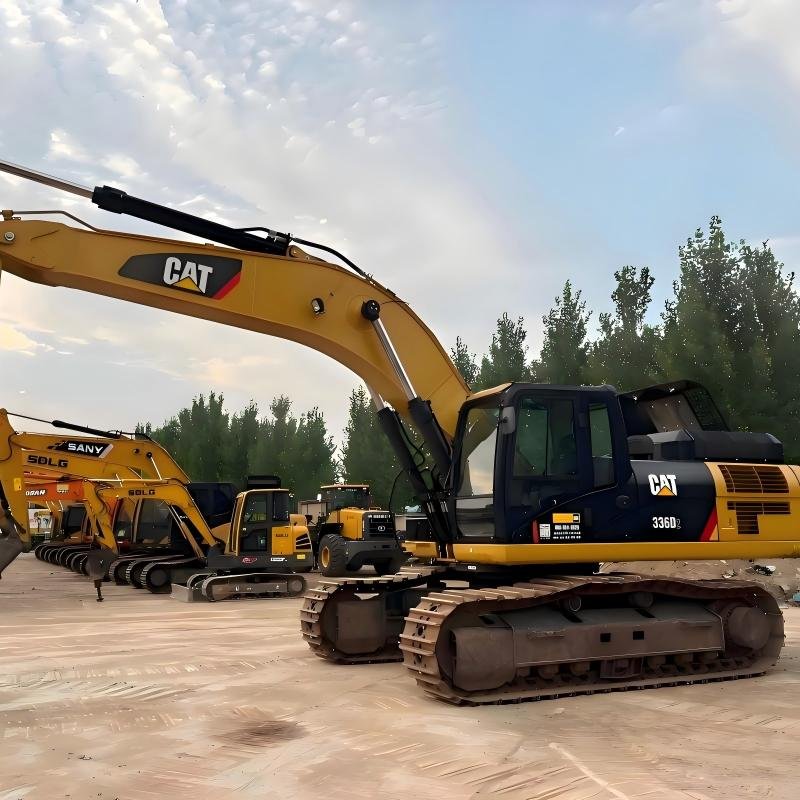

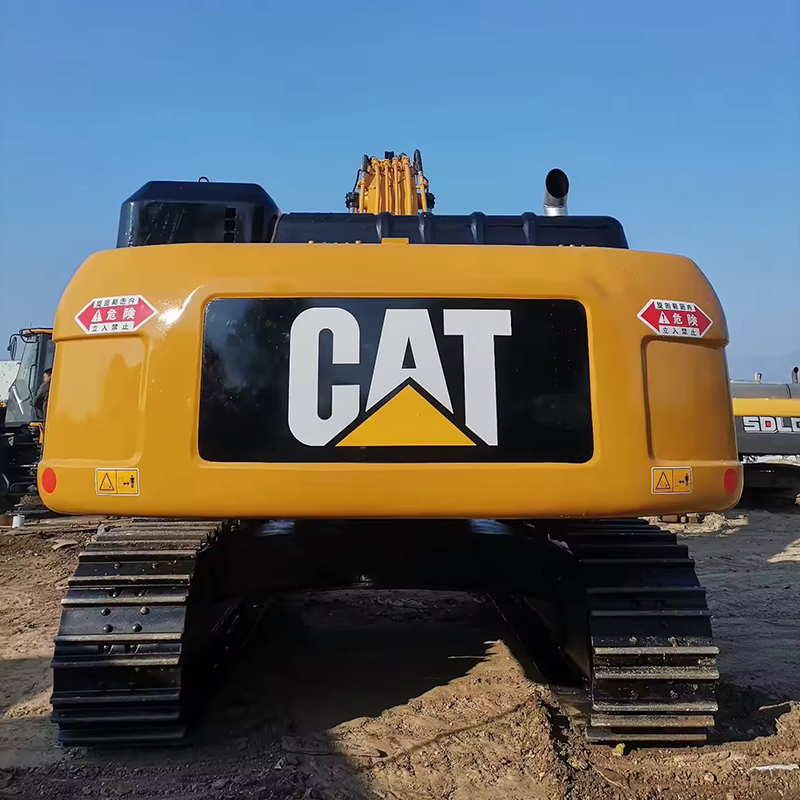

Core Advantages of Caterpillar 336D2 Excavator:
Enhanced Power – 300 hp C9.3B engine with 7% more power
Fuel Efficiency – Optimized hydraulic system reduces fuel consumption by 10%
Robust Durability – Reinforced structure design with 35,000-hour service life
Precise Control – Advanced hydraulic technology improves operational accuracy by 15%
36-ton large excavator, suitable for heavy-duty applications such as mining and large earthworks.
Product Parameters
| Basic Specifications | Operation Weight | 37200-39000KG |

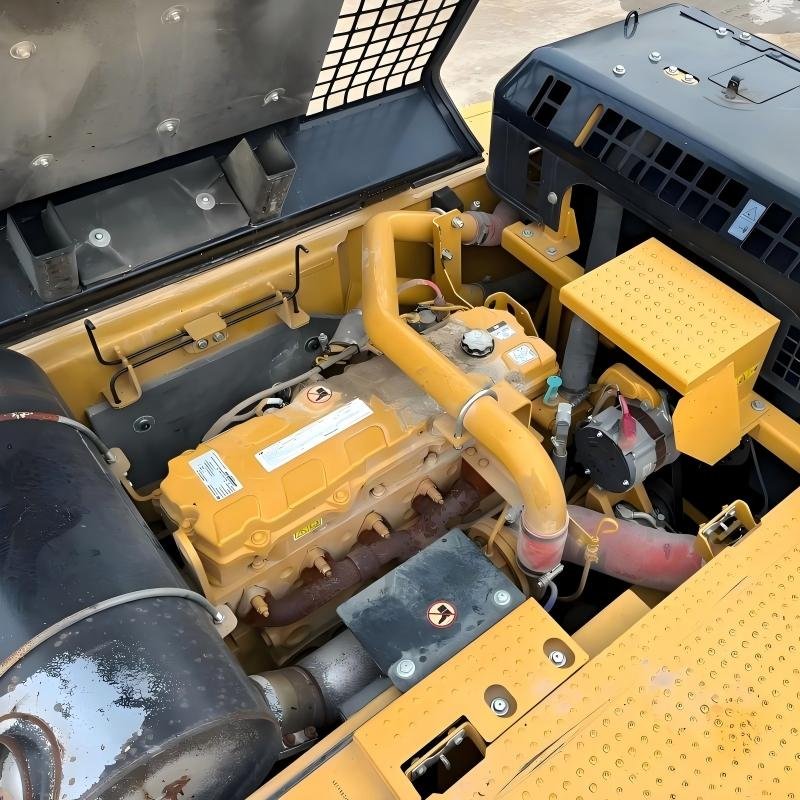

| Engine Brand | Cat C9.3B ACERT | |
| Rated Power | 224KW | |
| Digging Bucket Capacity | 1.7-3.0m³ | |
| Traveling Motor | High-speed motor + Planetary gear reducer | |

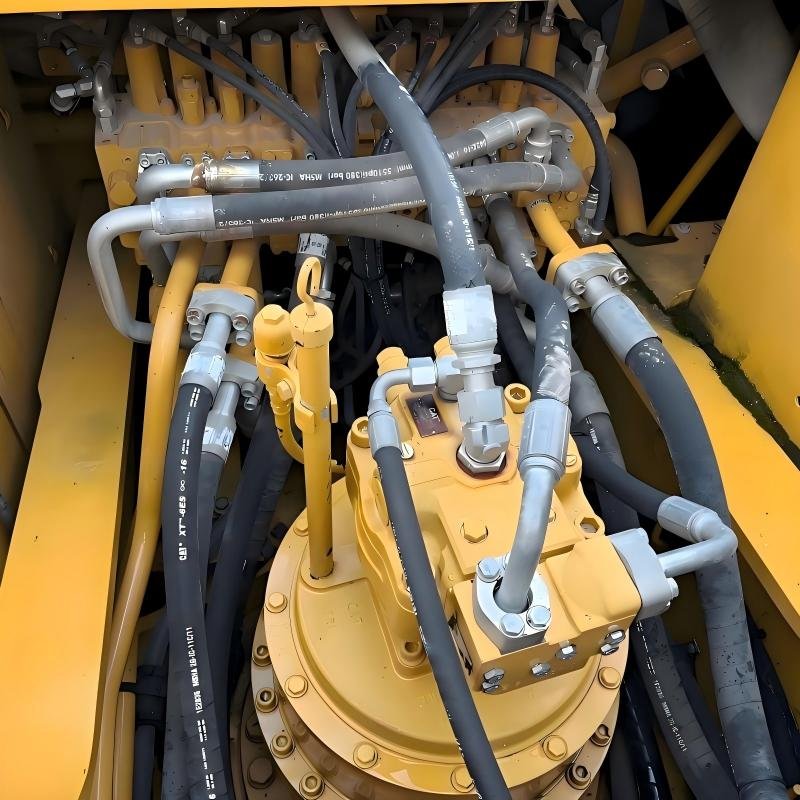

| Swing Motor | High-speed motor + Planetary gear reducer | |
| Hydraulic system | Piston Pump | |
| Fuel tank | 750L | |
| Hydraulic oil tank | 450L | |
| Main Dimensions | Overall Length | 11950(mm) |
| Overall Width | 3250(mm) | |
| Overall Height | 3680 (mm) | |
| Track Width | 600 (mm) | |
| Track Length | 5480 (mm) | |
| Performance | Max. Digging Radius | 12050 (mm) |
| Max Digging Depth | 8320(mm) | |
| Max. Unloading Height | 8450(mm) | |
| Max. Digging Height | 11980(mm) | |
| Max. Grade Ability | 35 | |
| Swing Speed | 10.8R/min | |
| Travel Speed | 5.3km/h |
