Product description
Core advantages of the Caterpillar 307C excavator:
Durability: Key components are highly reliable, suitable for long-term intensive use.
Efficiency: The hydraulic system offers precise control and strong power for outstanding productivity.
High Resale Value: Well-recognized in the used equipment market, backed by a comprehensive parts and service network.
In summary: It is a classic model renowned for being reliable, efficient, and cost-effective.
Product Parameters
| Basic Specifications | Operation Weight | 7600KG |
| Engine Brand | Cat 3024C turbocharged diesel engine. | |
| Rated Power | 36KW | |
| Digging Bucket Capacity | 0.2m³ | |
| Traveling Motor | High-speed motor + Planetary gear reducer | |
| Swing Motor | High-speed motor + Planetary gear reducer | |

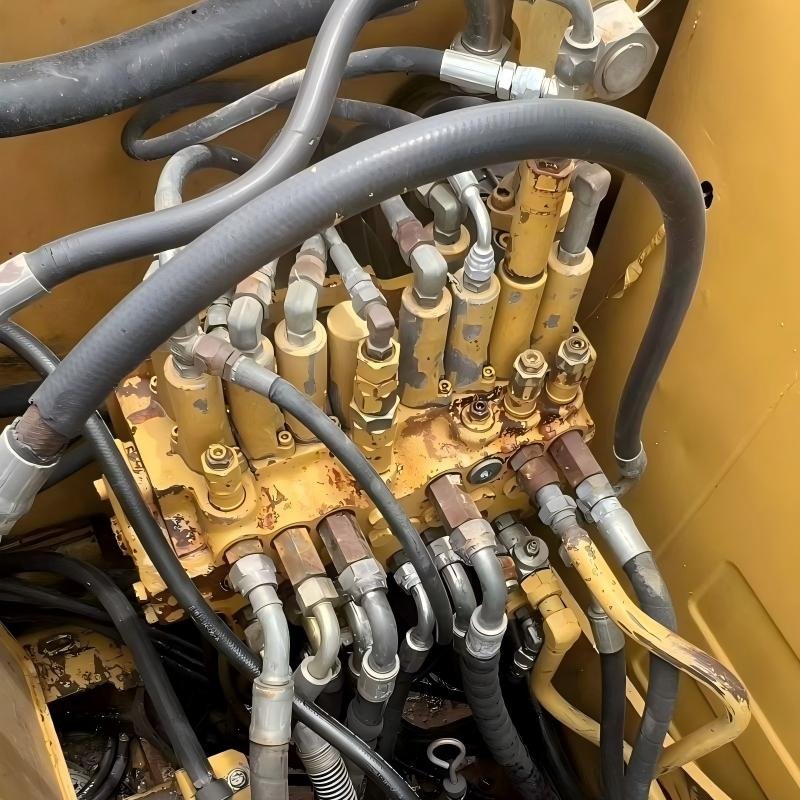

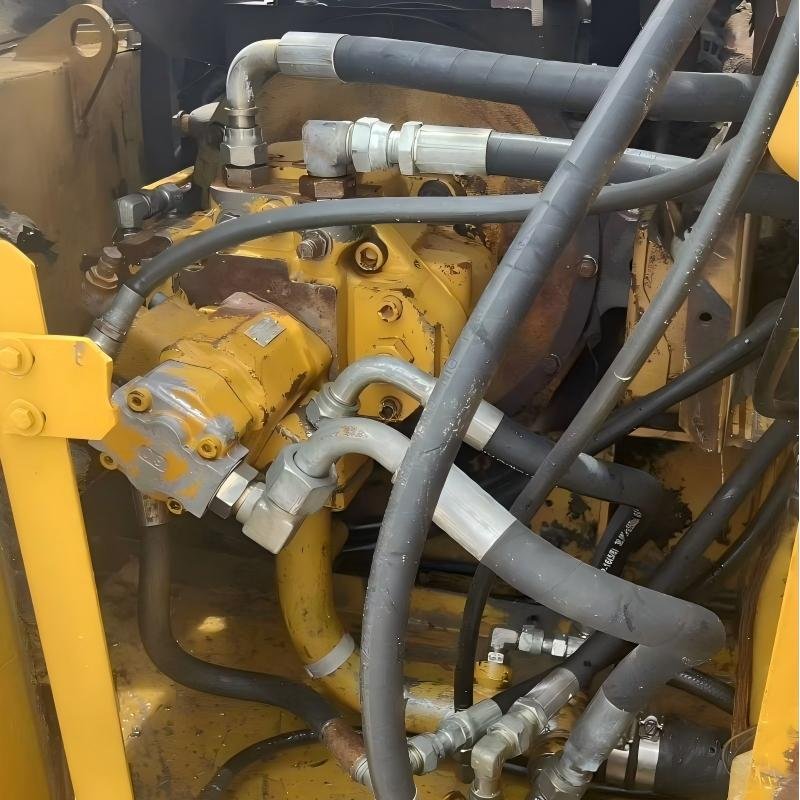

| Hydraulic system | Piston Pump | |
| Fuel tank | 130L | |
| Hydraulic oil tank | 110L | |
| Main Dimensions | Overall Length | 5900(mm) |
| Overall Width | 2200(mm) | |
| Overall Height | 2600 (mm) | |
| Track Width | 450-600 (mm) | |
| Track Length | 3000 (mm) | |
| Performance | Max. Digging Radius | 6670 (mm) |
| Max Digging Depth | 4000(mm) | |
| Max. Unloading Height | 5790 (mm) | |
| Max. Digging Height | 7600 (mm) | |
| Max. Grade Ability | 35 | |
| Swing Speed | 12R/min | |
| Travel Speed | 3-5.5km/h |
